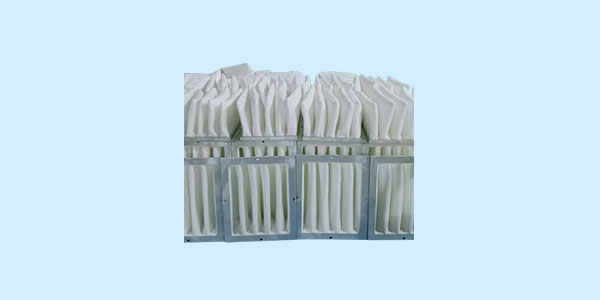

Our Pocket filters offer maximized operational reliability and cost efficiency for supply, circulated air
filtration in ventilation systems In industrial processes (chemicals, pharmaceuticals, foods and
beverages, optics, electronics, surface treatment, etc.).
Key Features
High arrestance throughout their entire useful lifetime, providing maximized operational reliability.
The high mechanical strength of the material used offers good dimensional stability throughout
the operational lifetime, even when handling large air volumes, thus ensuring dependable
operation of the filter system concerned.
The frame consists of Galvanized Steel along with Pockets rods of Dia 05 mm.
The exceptionally low pressure drops and the high dust holding capacity provide ultra- efficient,
energy-saving operating characteristics, with a slow increase in the pressure drop and resultant
additional lifetime reserves. This produces a significant reduction in operating costs.
Key Technical Data
Size
Filter Size (Box Type)
mm
590x590
Pocket Depth
mm
350
No of Pockets
Nos.
08
Filter media
Type
Synthetic
Nominal volumetric flow rate
CMH
3400
Initial/ average efficiency
%
> 95% down to 5μ
Initial pressure drop
mm WG
< 15
Recommended final pressure drop
mm WG
45
Moisture resistance/ Rel. Humidity
%
100
Thermal Stability
℃
Up to 70
Weight approx.
Kgs
4
